CNC Thread Rolling That Actually Delivers: Field Notes from the Shop Floor
If you’ve ever chased consistent threads on tough stainless or anchor bolts, you know why a cnc thread rolling machine is a different league from cutting. Cold forming strengthens the root, improves surface finish, and boosts throughput—without showering the floor in chips. I’ve spent enough time around fastener lines to see the difference with my own eyes.

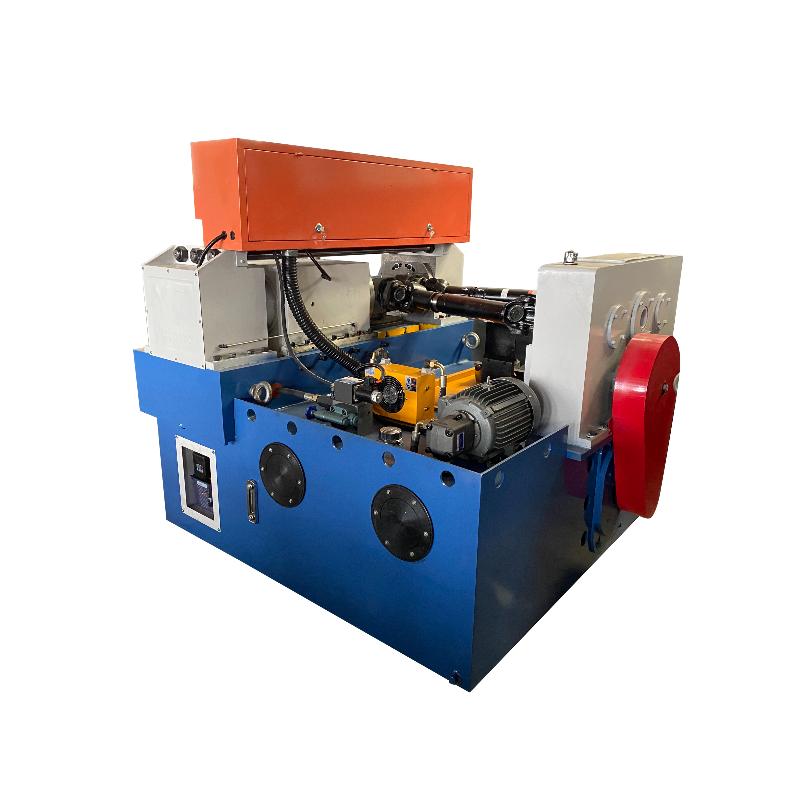

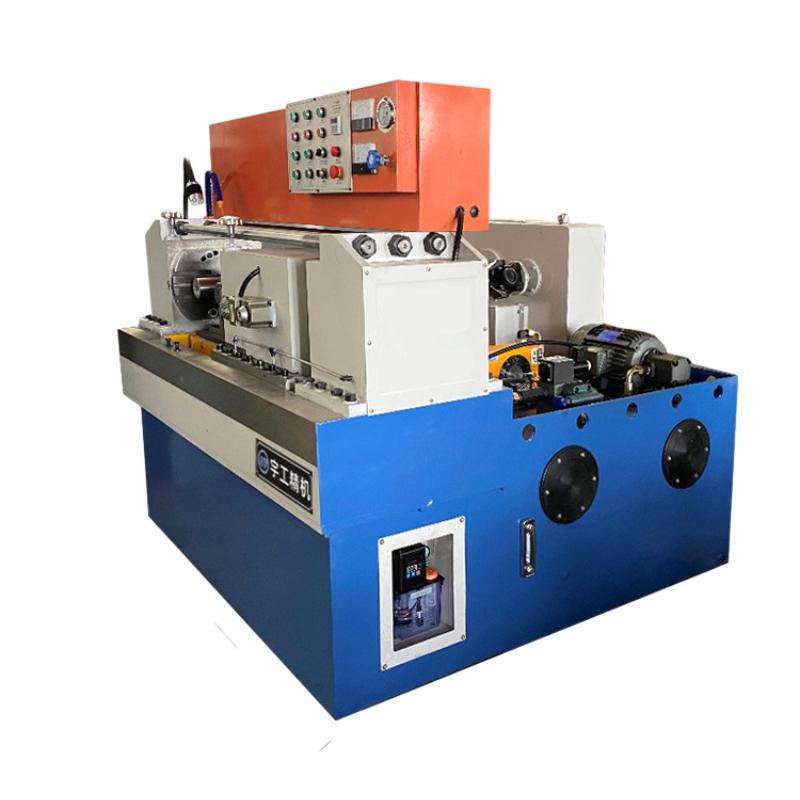

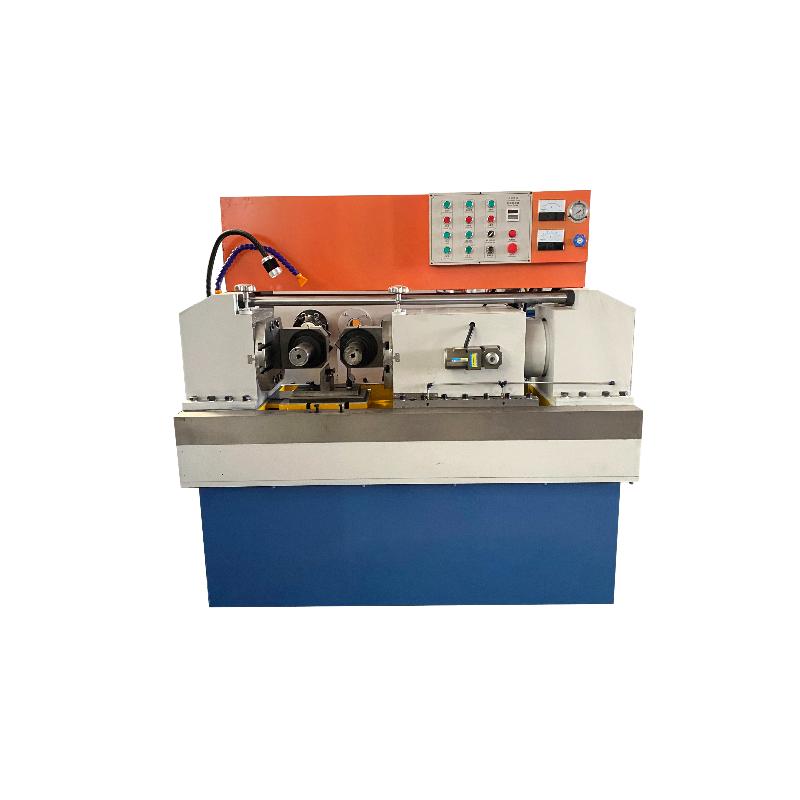

Product Snapshot: Type 250 Rolling Workhorse
Product name: “anchor bolt stainless rod thread making machine thread rolling machine.” Origin: XingWan Industrial Zone, Xingtai City, Hebei, China. It’s a compact beast that’s surprisingly straightforward to dial in.
| Max Rolling Diameter | 60 mm | Thread Length | Not limited (through-feed) |
| Main Drive Power | 15 kW | Hydraulic Power | 3.75 kW |
| Cooling Power | 125 W | Overall Size (L×W×H) | 1950×1750×1600 mm |
| Materials | Carbon steel, Alloy, SS304/316, Rebar | Customization | Dies/pitch/fixtures configurable |
Where It Fits (and Shines)
- Construction: anchor bolts, tie rods, couplers
- Automotive and rail: studs, ball-joint threads, suspension hardware
- Energy: wind tower bolts, pipeline supports
- General fab: stainless rods for marine hardware
Many customers say the jump from cut threads to cnc thread rolling machine output is immediate: stronger threads (work-hardened root), smoother finish, less scrap. Honestly, less coolant mess too.
Process Flow, Standards, and Real-World Checks
Flow: Cut-to-length → chamfer → cold roll with matched dies → deburr → clean → gauge → pack.
Methods: Through-feed for long rods; infeed for short studs/shouldered parts.
Testing: GO/NO-GO per ISO 965-1 or ASME B1.1; surface defects per ISO 6157; tensile tests to ISO 898-1 (or ASTM A193 for stainless). Typical results we’ve seen: tolerance 6g/6H achieved consistently; Ra ≈ 1.6–3.2 µm on carbon steel; flank angle within spec after 8-hour runs.
Service life: Rolling dies last longer than cutters—often tens of thousands of parts, depending on material and lube. Real-world use may vary, obviously.
Why This Machine
- Unlimited thread length for rods—no fussy re-clamping
- Solid 15 kW drive for 60 mm stock; steady hydraulic system
- CE-ready builds and ISO 9001 plant routines (ask for the latest certificates)
- Origin transparency: Xingtai, Hebei—an area that lives and breathes fastener machinery
Vendor Landscape (What Buyers Compare)
| Vendor | Max Ø (≈) | Lead Time | Support | Certs | Price Level |
|---|---|---|---|---|---|
| MOTE Tools (Type 250) | 60 mm | 4–8 weeks | Remote + on-site (regional) | ISO 9001, CE (ask) | Value |
| EU Brand (heavy-duty) | 50–80 mm | 8–16 weeks | On-site, multi-language | CE, ISO | Premium |
| Local Integrator | 40–60 mm | 2–6 weeks | Phone/on-call | Varies | Budget |
Customization and Setup Tips
Specify die profile (ISO metric, UNC/UNF, trapezoidal), pitch range, infeed/through-feed tooling, coolant chemistry (sulfurized oils for stainless help), and loading (vibration hopper, bar feeder). A quick fixture tweak often halves setup time—learned that the hard way.
Mini Case: 36 mm Anchor Bolts
A contractor shop switching to a cnc thread rolling machine for M36 anchor bolts (Q235 and 304) reported roughly 22–28% cycle-time savings vs. cutting, and fewer thread galling complaints onsite. Gauging hit 6g consistently over a two-shift run. Not bad.
Final Word
Thread rolling is one of those upgrades you feel in your scrap bin and warranty log. This unit is a sensible entry—compact, muscular, and friendly to long-rod work.
Authoritative references
- ISO 68-1: Basic profile for ISO general purpose metric screw threads.
- ISO 965-1: Tolerances for ISO metric screw threads.
- ISO 6157-1: Fasteners — Surface discontinuities — Bolts, screws and studs.
- ASME B1.1: Unified Inch Screw Threads (UN, UNR, UNJ).
- ASTM A193/A193M: Alloy-Steel and Stainless Steel Bolting for High Temperature or High Pressure Service.
