Inside the workshop: a candid look at a modern thread rolling tool
If you’ve ever watched a bolt come together under rolling pressure, you know the weird satisfaction of perfect crests forming with almost no swarf. Cold forming has that effect—efficient, consistent, a bit hypnotic. Lately, I’ve been spending time with shops that upgraded to the Z28‑150 from XingWan Industrial Zone, Xingtai City, Hebei, China, and, to be honest, the chatter from operators has been unusually positive.
What’s trending in thread rolling
Two macro trends: rising steel prices (waste is out) and stricter tolerances in automotive and wind components (process capability is in). Rolling beats cutting in both—no chip load, higher tensile strength in the flank due to strain hardening, and smoother finishes that can hold gauge longer. Many customers say the switch from cutting to a thread rolling tool also cleaned up their coolant bills—surprisingly, that adds up.

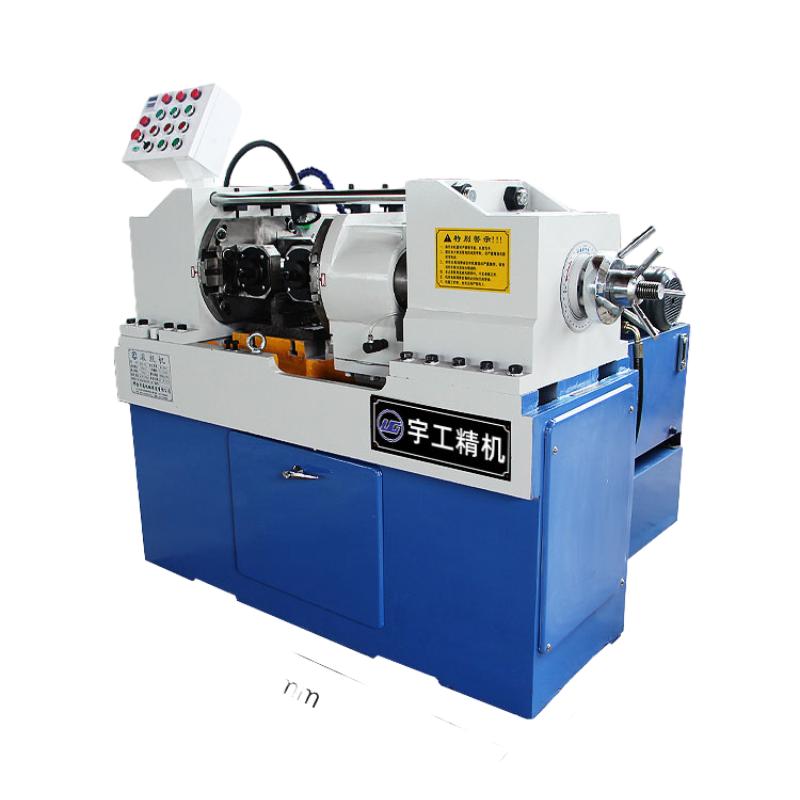

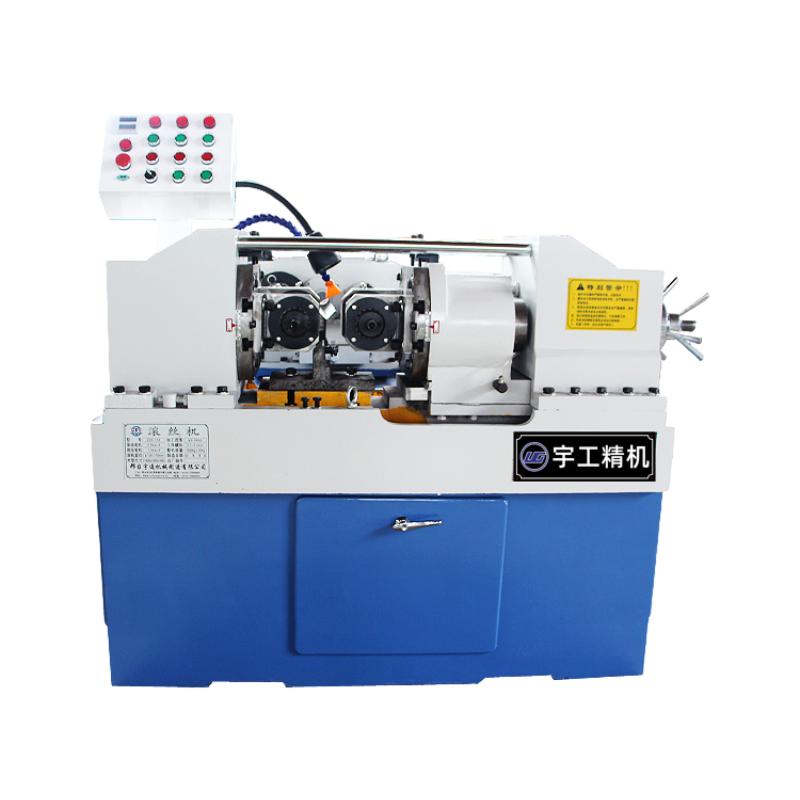

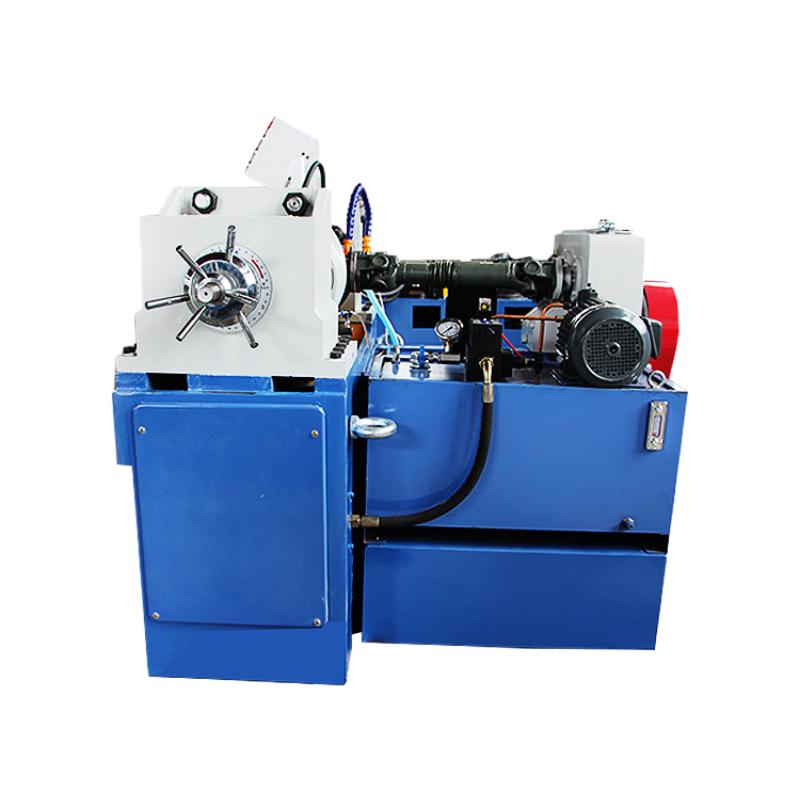

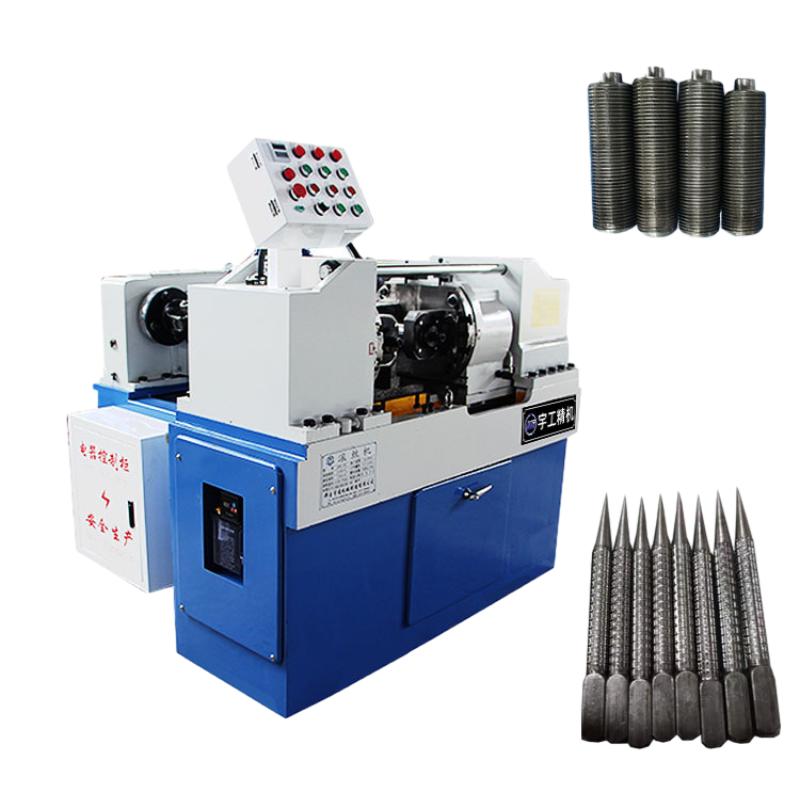

Product spotlight: Z28‑150 automatic thread rolling machine
This unit covers common fastener and rod work without being fussy. It’s not the biggest machine in the yard—and that’s kind of the point. In fact, for M6–M42 work with moderate pitches, it’s a practical daily driver.
| Spec | Z28‑150 |
|---|---|
| Diameter capacity | Ø6–42 mm |
| Pitch range | 1–5 mm |
| Main motor | 5.5 kW |
| Hydraulic motor | 1.5 kW |
| Cooling power | 90 W |
| Dimensions (L×W×H) | 1600×1550×1445 mm |
| Weight | ≈1800 kg |
| Origin | Xingtai, Hebei, China |
Process flow and quality checkpoints
- Materials: carbon/alloy steels (e.g., 10B21, 1045), stainless (A2/A4), and heat‑treatable grades. Pre‑turning and chamfering recommended.
- Method: cold rolling with matched dies; lubrication via EP oil or water‑soluble emulsion (viscosity tuned to pitch).
- Testing standards: GO/NO‑GO per ISO 1502; metric thread tolerances to ISO 965; sampling by ISO 2859‑1; mechanical tests per ASTM A370.
- Typical results (internal tests; real‑world use may vary): pitch accuracy within 6H; Ra ≈ 1.6–3.2 μm on flanks; repeatability ±0.03 mm on major diameter.
- Service life: rolling dies often 80k–150k pieces on 1045 with proper lube; machine PM interval 500 hours.
- Industries: automotive fasteners, guardrail bolts, power‑gen studs, formwork rods, agriculture equipment.
Where a thread rolling tool shines
- High throughput for M12–M24 studs and bolts
- Better flank strength vs. cut threads (strain‑hardened root)
- Low scrap; minimal chip handling
- Consistent gauge pass on long runs
Vendor comparison (quick take)
| Vendor | Capacity | Power | Lead time | Certs |
|---|---|---|---|---|
| MOTE Tools Z28‑150 | Ø6–42 mm, 1–5 mm pitch | 5.5 + 1.5 kW | ≈4–6 weeks | ISO 9001 (supplier‑level) |
| Global Brand A (EU) | Ø6–48 mm, 1–6 mm | ≈7–9 kW | 8–12 weeks | CE, ISO 9001 |
| Local Shop B (refurb) | Ø8–36 mm | varies | 2–8 weeks | case‑by‑case |
Customization and support
Die sets for metric/UNC/UNF, custom chamfer guides, and in‑feed automation are common requests. I guess the headliner option is application‑matched die material and coating for abrasive stainless—worth it if you live in A4.
Field notes (short case study)
An automotive fastener line rolling M16×2 studs switched to this thread rolling tool with EP‑lube and a revised chamfer. Reported outcomes after 60 days: cycle time −18%, gauge pass rate 99.3% (ISO 1502), scrap down from 2.1% to 0.7%, die life ~110k pieces before regrind. Not a lab—just shop floor data, but solid.
Compliance and documentation
- Thread systems: ISO metric (DIN 13), UNC/UNF on request.
- Inspection: GO/NO‑GO per ISO 1502; capability studies to ISO 22514 (on demand).
- Mechanical validation: tensile/shear per ASTM A370; sampling plans to ISO 2859‑1.
Citations
- ISO 965‑1: Metric screw threads—Tolerances (ISO)
- ISO 1502: Gauges for ISO metric threads—GO/NO‑GO (ISO)
- ASTM A370: Standard Test Methods for Mechanical Testing of Steel Products (ASTM International)
- DIN 13: ISO metric screw threads (DIN)
- Machinery’s Handbook, 31st Ed., Industrial Press
